mo.lock NFC DIGITAL IGNI.

Pris

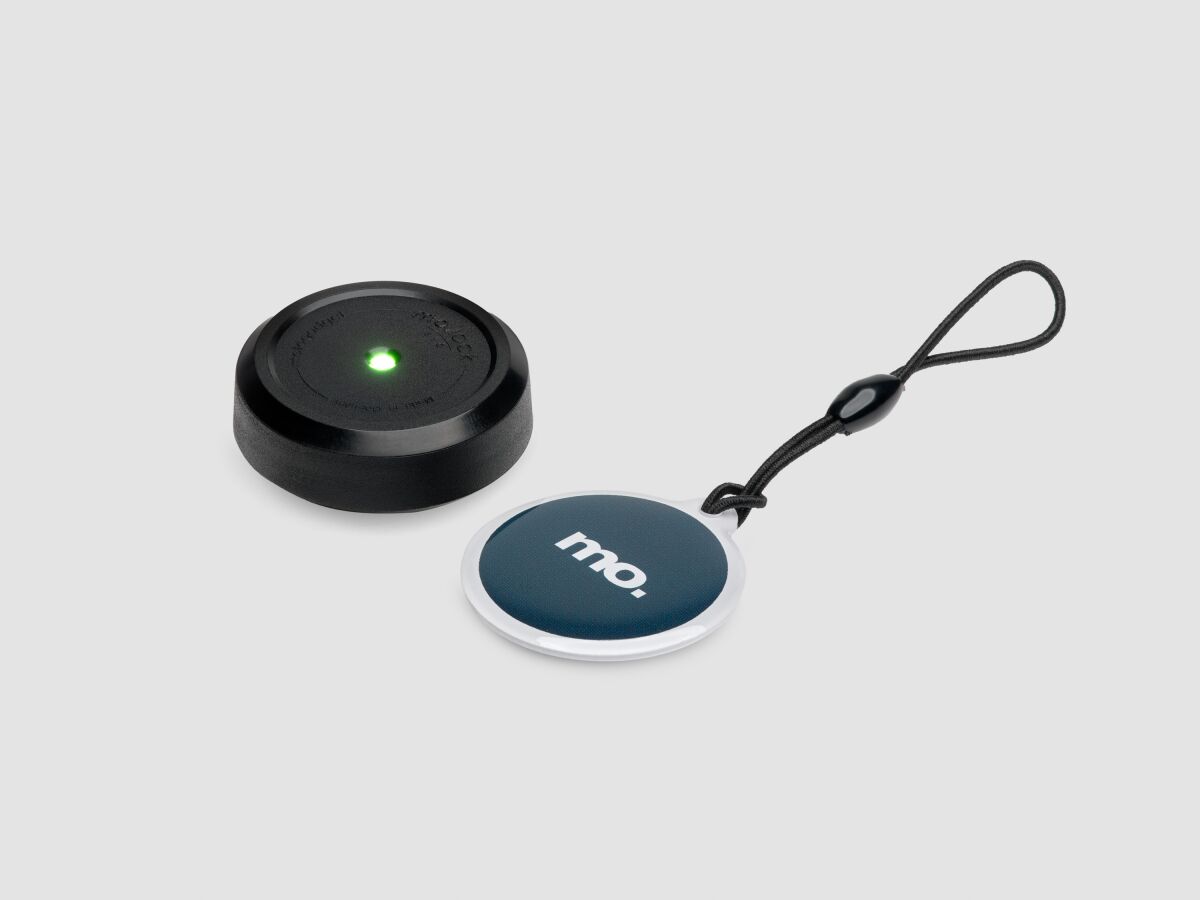

mo.lock NFC Lock

Digital ignition lock replacing mechanical ignition lock or their electrical switching function.

Near-Field-Communication technology is tamper-proof compared to radio remote controls.

Lock is small allowing hidden mounting behind non-metallic parts.

Overloading or scorching of contacts is impossible due to indirect switching via 40A load relay.

Lock automatically reduces the quiescent current in 3 stages when not used.

100% water and vibration resistant thanks to lock being overmolded with non-flammable thermoset.

Contactless switching distance is approximately 4cm safely ensuring switching ON and OFF excluding unintentional actuation.

Integrated RGB LED indates status of lock when in use and when teaching new keys.

Keys require no battery and are 30mm in diameter and weigh 2gr.

Additional keys can be purchased and trained for the lock each key has a unique code.

Technical data

Mounting 1 x M3 threaded bushing on rear side, bracket with 2 mounting holes

Operating temperature -20°... +80°C

Height 12 mm without plug contacts and housing

Weightl approx. 35 g

Operating voltage8 V - 18 V

Diameter of the transmitter/receiver on the vehicle 32 mm

replaces art. 0521-0889
